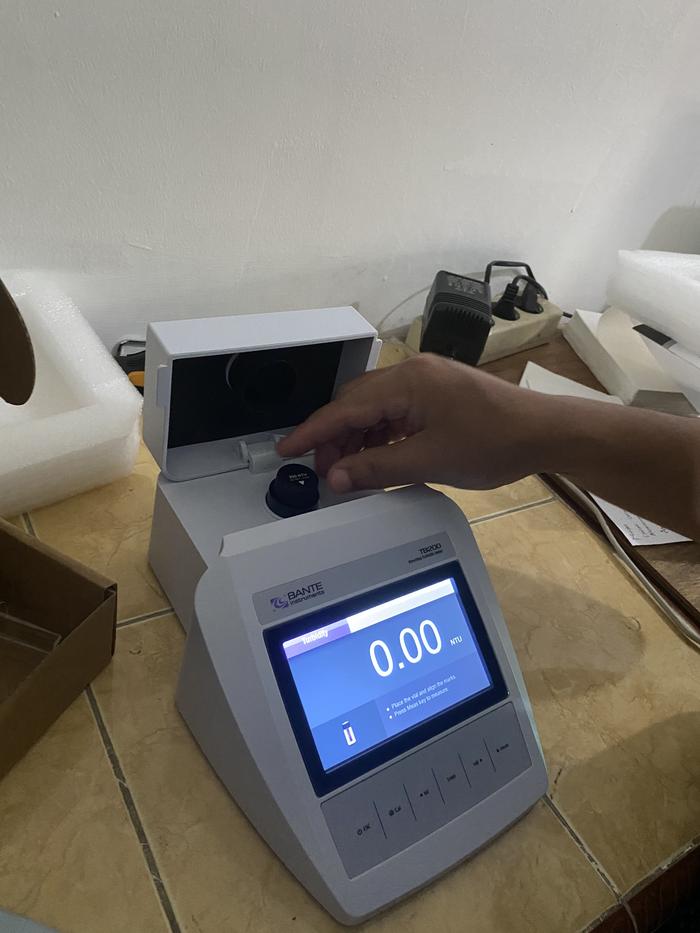

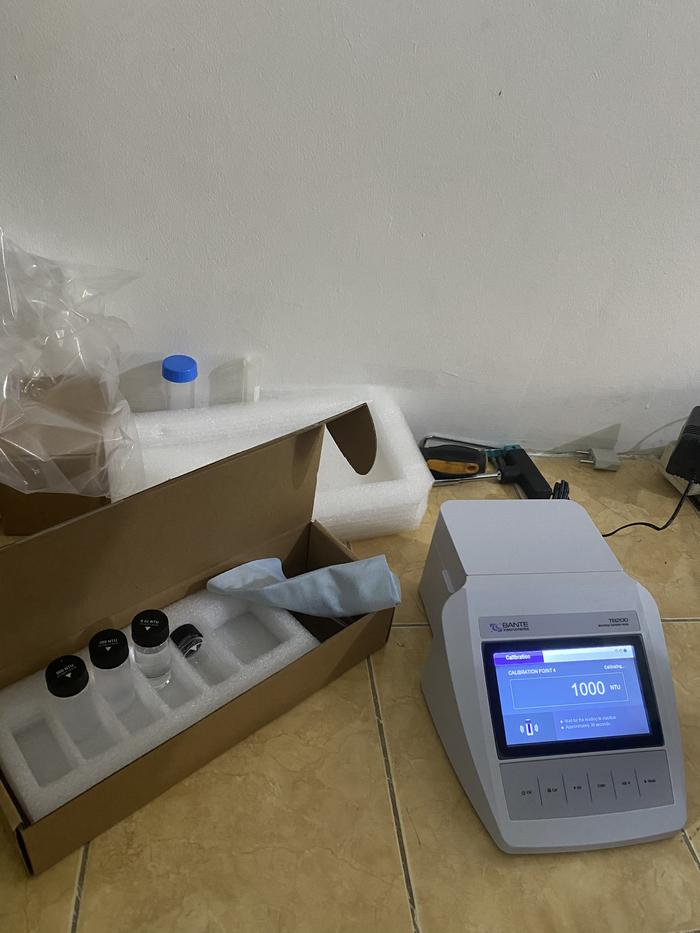

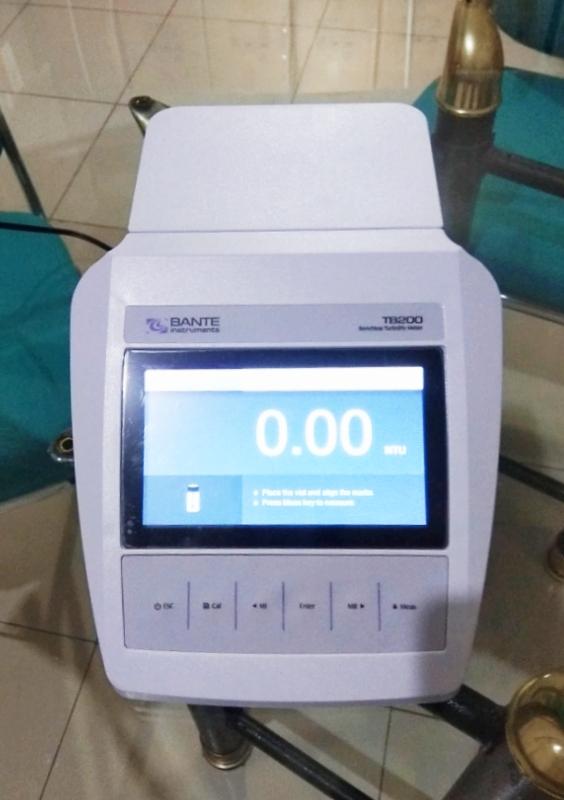

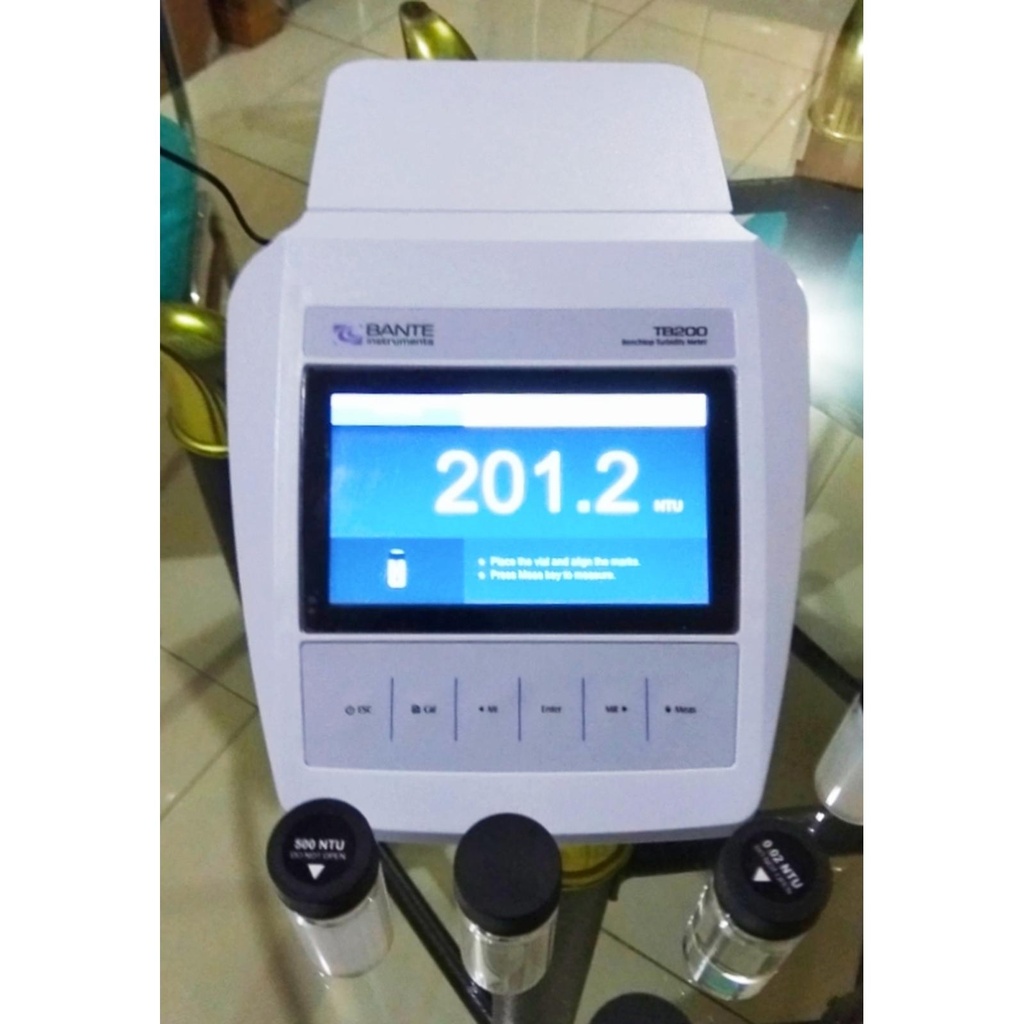

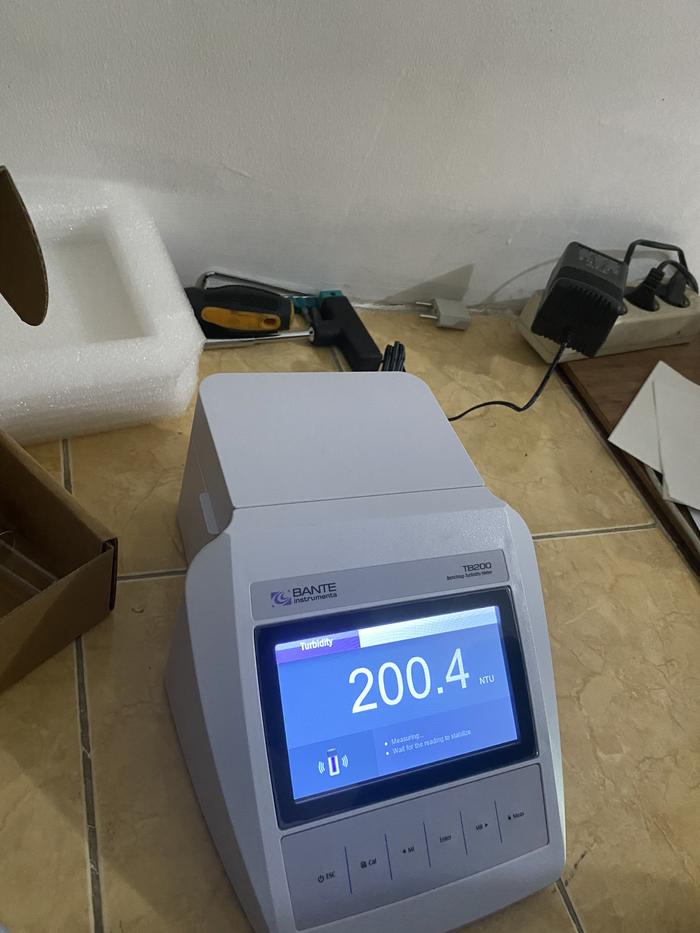

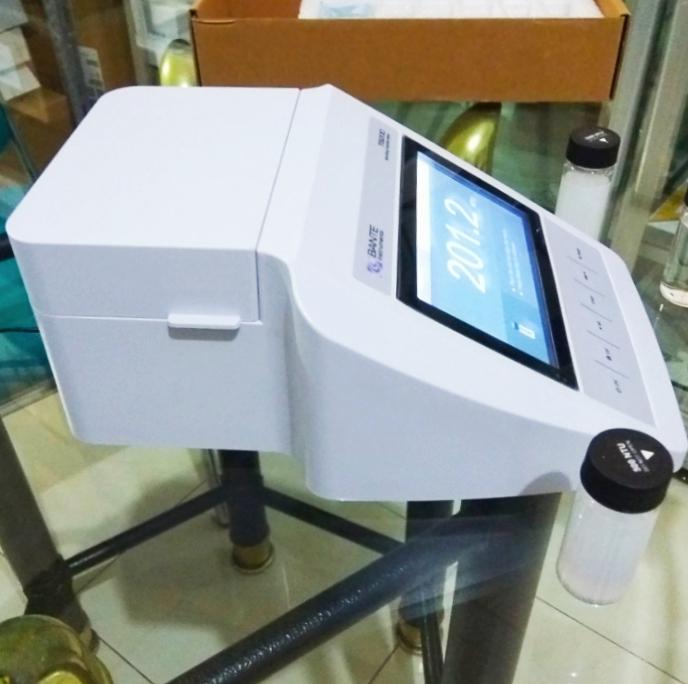

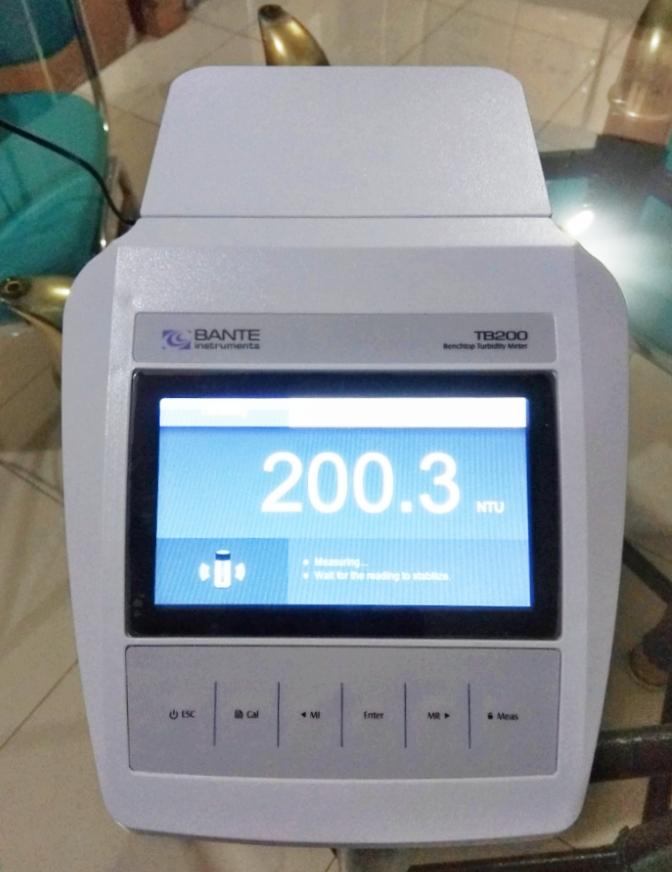

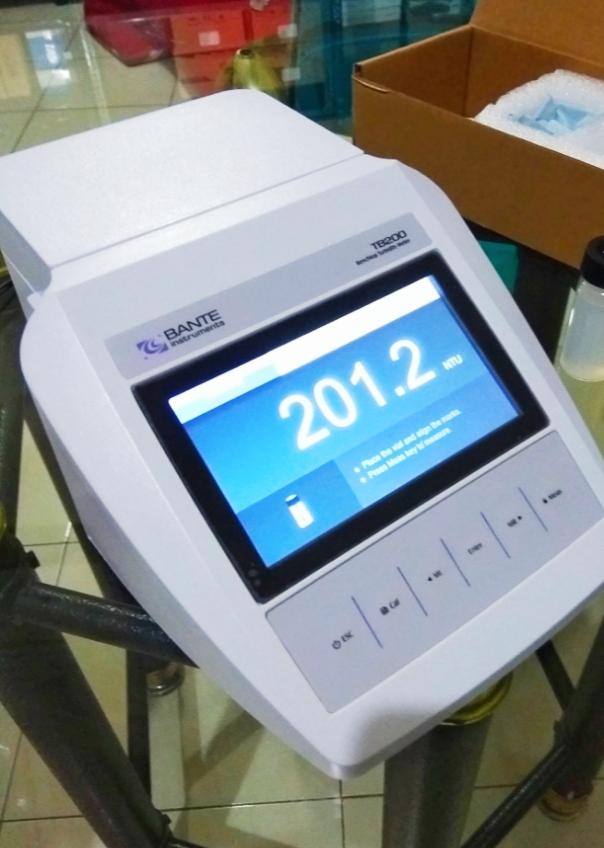

Benchtop Turbidity Meter TB-200 Brand BANTE
Benchtop Turbidity Meter
Model : TB200
Merk : BANTE
Instrument Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.
Features :
• Multiparameter benchtop turbidity meter is equipped with a 4.5 inches TFT display.
• 2 to 7 points calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures the accurate measurement of the total suspended solids.
• Auto-Read function senses and locks a stable reading.
• Password protection prevents the unauthorized calibration and settings.
• Setup menu allows setting the date and time, measurement mode, resolution, auto-power off, etc.
• Expanded memory stores or recalls up to 200 data sets.
• USB communication interface is easy to transfer data to PC.
• Reset function automatically resumes all settings back to the factory defaults.
Applications : • Industrial wastewater plants
• Municipal water and other industrial applications
Specifications : Turbidity Range 0~2000 NTU, 0~500 EBC, 0~9999 ASBC Accuracy 2% (0~500 NTU), 3% (501~2000 NTU) Resolution 0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~2000 NTU) Calibration Points 2 to 7 points Calibration Standards , 1000, 1500, 2000 NTU TSS Range Deponding on the TSS conversion factor Accurac y+_3% of reading Resolution 0.1, 1 General Light Source Infrared-emitting diode, 850nm wavelength Detector Silicon photodiode Stray Light lt; 0.02 NTU Memory Stores up to 200 data sets Output USB communication interface Display 4.5 #34; TFT LCD Power DC12V, using AC adapter, 220V/50Hz Auto-Power Off 2 hours after last key pressed Dimensions 250(L)177(W)96(H)mm Weight 1.2kg
