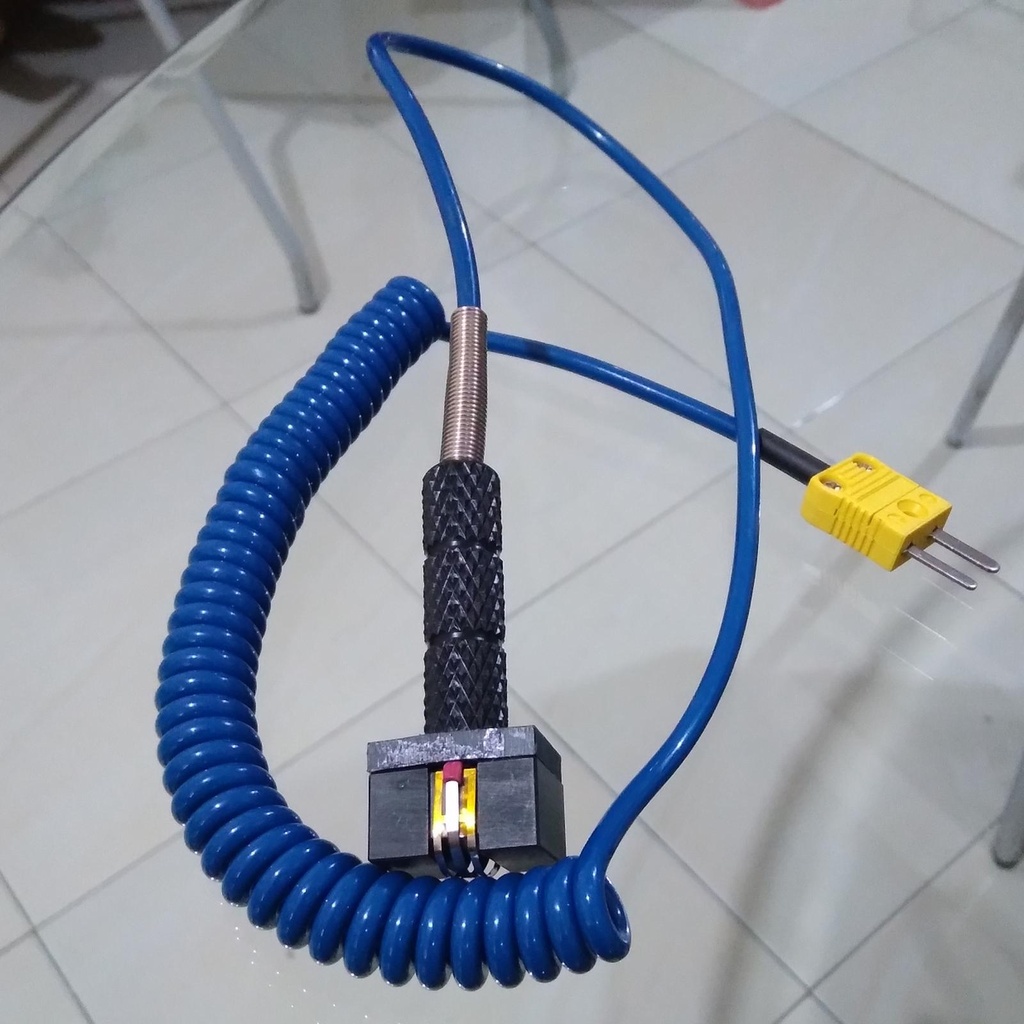

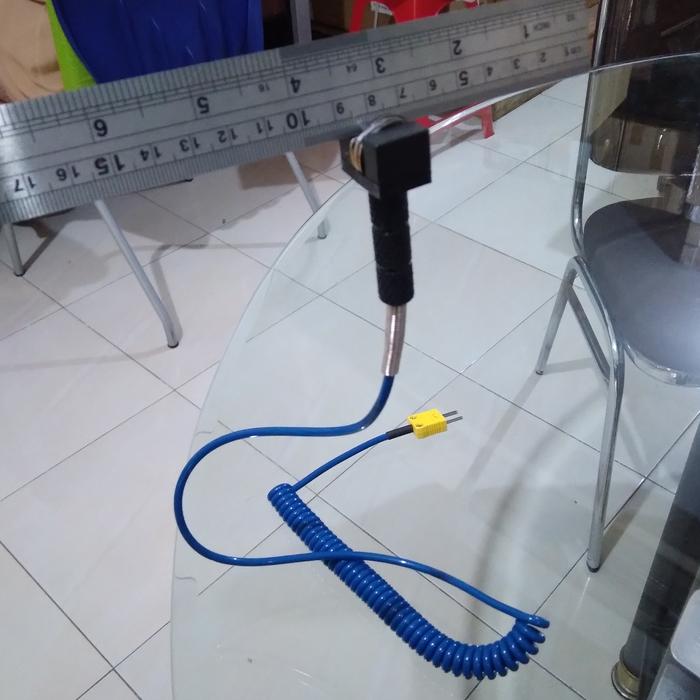

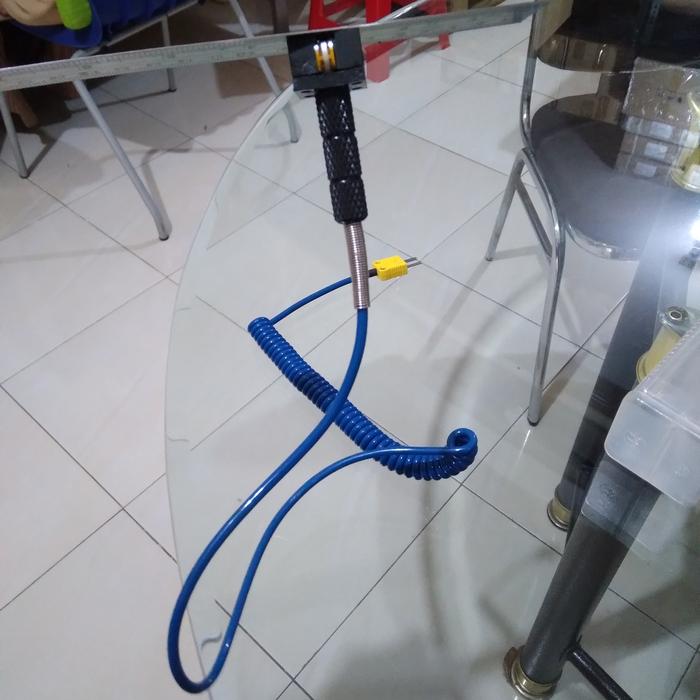

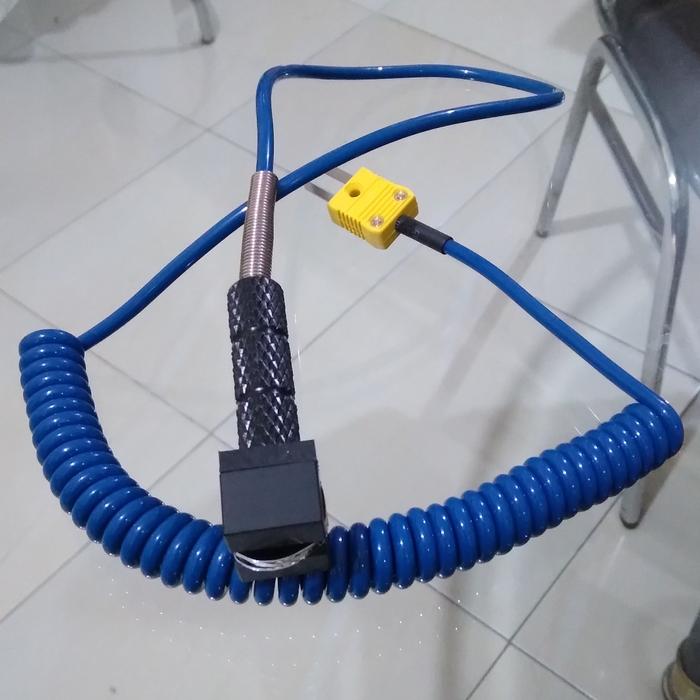

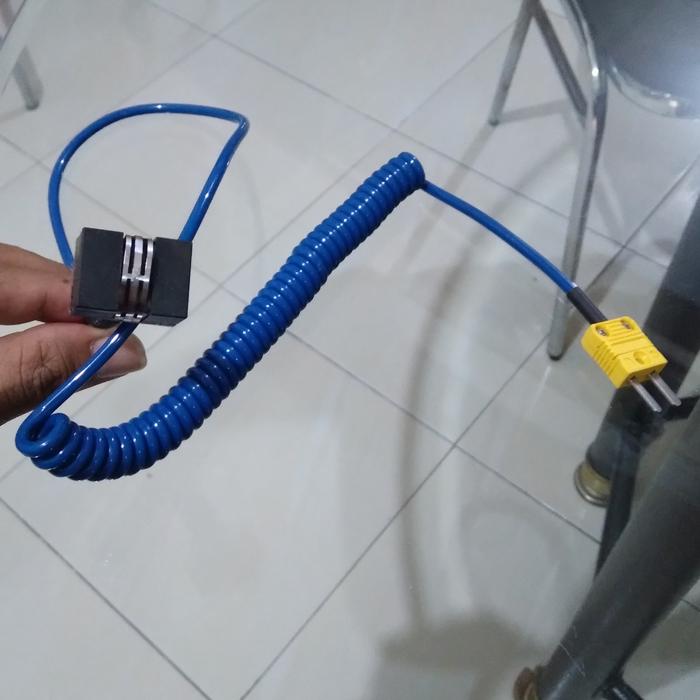

Magnetic Temperature Probe Type K Max Temp 300 C HP-202A-B25

Magnetic Temperature Probe Type K Max Temp 300 C


Type K magnetic temperature probe
Model No. : HP-202A-B25
Brand : MicroTemp


Magnetic temperature probe is ideal for measuring surface temperature such as motors, dryers, hot plates, iron surface, blast furnances, transformers, and heating elements.


Measurement Range： 300 °C
Accuracy： 0.75 Class (Class B)
Dimension： 23x17x16 mm (magnetic head size)


Applications for Automative Industry Vessel-equipment Building Construction Laboratory Thermal Furnace Automation Electrical Storage


Specifications
Model No. HP-202A-B25
Thermocouple Type Standard type K thermocouple
Measurement Range MAX 300 °C
Response Time 2 seconds
Element Triple flat ribbon or single flat ribbon
Cable Length & Material 2 M PU coiled cable in blue (Standard)
Straight cable length can be ordered as per customers request
Weight 60g


Features
Single strong magnet embedded in bakelite head
Probe with miniature connector
Fast and easy attachment
Easy measurement on metal surface
Good insulation effect
Compatible with Type K thermometers
