Meter Color ACS-115S Amittari

Product
Description

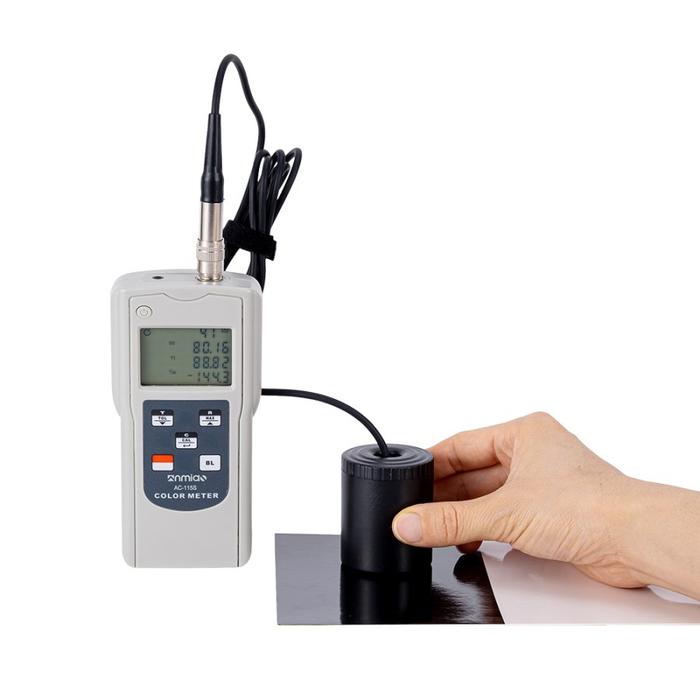

AMITTARI Color Meter AC-115S is an extremely compact, extremely easy-to-use tristimulus color meter specially designed for measuring the color difference between two colors. The meter is designed for measuring the color of no lighting and non-uorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.
Product Feature * The measuring head of meter need to touch with color sample without any distance. * Color difference displayed ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI , Tw) * Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw). * Statistical function (Maximum, Minimum, Average and Standard Deviation) * Color difference tolerance set to perform PASS/ WARN/ FAIL. * Store 9 color-difference target colors. * User calibration function ensures higher accuracy. * Auto memory (99 sets) amp; Read function. * Digital back light display. * Auto power off function. * Use USB data output and RS-232 data output with connection PC. Product Parameters Display Triple 4 digit LCD Display Auto power off Approx. 3 minutes Data memory capacity 99 set. (Direct reading from LCD display) Low battery indication Temperature Operating: 0~40°C(32~104°F), Storage: -10~40°C(14~104°F) Humidity Operating: lt;85%RH., Storage: lt;70%RH. Power source 4x1.5 AAA (UM-4) Battery Dimensions Main unit: 140x70x31mm Sensor : Φ44x55mm Weight 205g (not including battery) Illuminating/ Viewing geometry 45°/ 0°: Illumination at 45°, measrement at 0° Illuminant White LED lamp Measuring area Approx. Φ10mm Display modes Color difference: ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI, Tw) Operating Temperature Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) Target color memory 9 channel; set by measurement or keypad Measuring range L*: 5 to 100 Measurement conditions Observe: CIE 2° Standard Observer RepeatabilIty Standard deviation within ∆E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate) Measurements interval minimum Approx. 2 seconds Product Accessories Standard Accessories Main Unit Measuring head White calibration card Carrying Case Operation Manual
