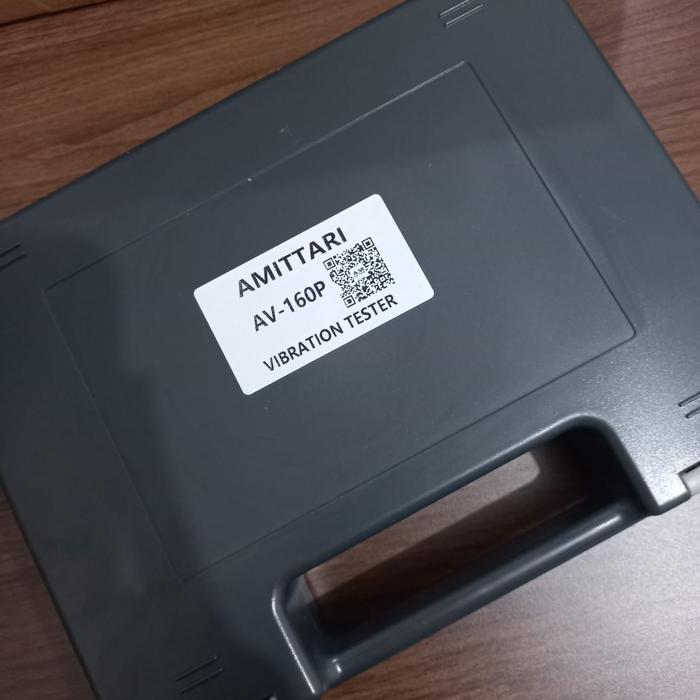

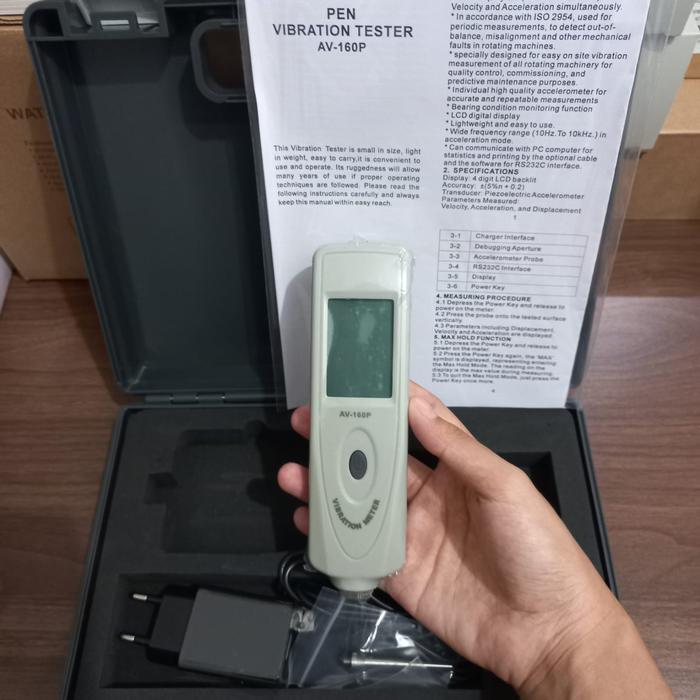

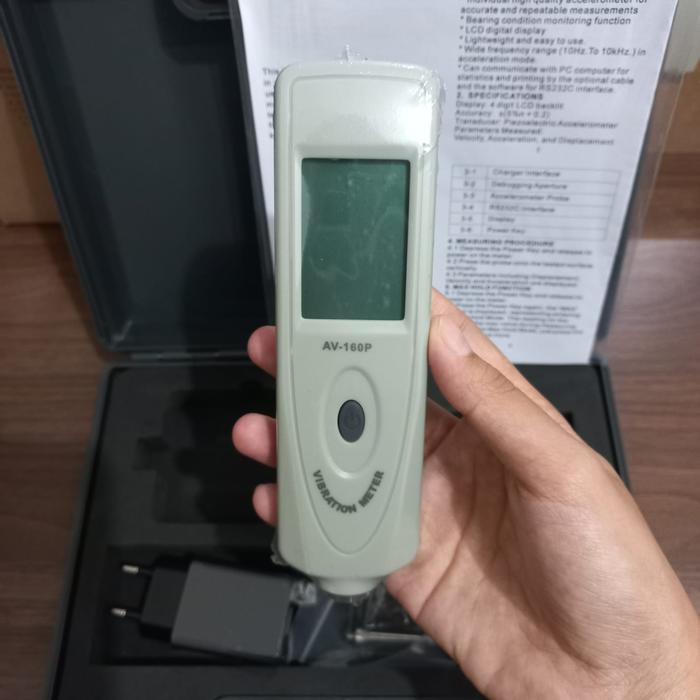

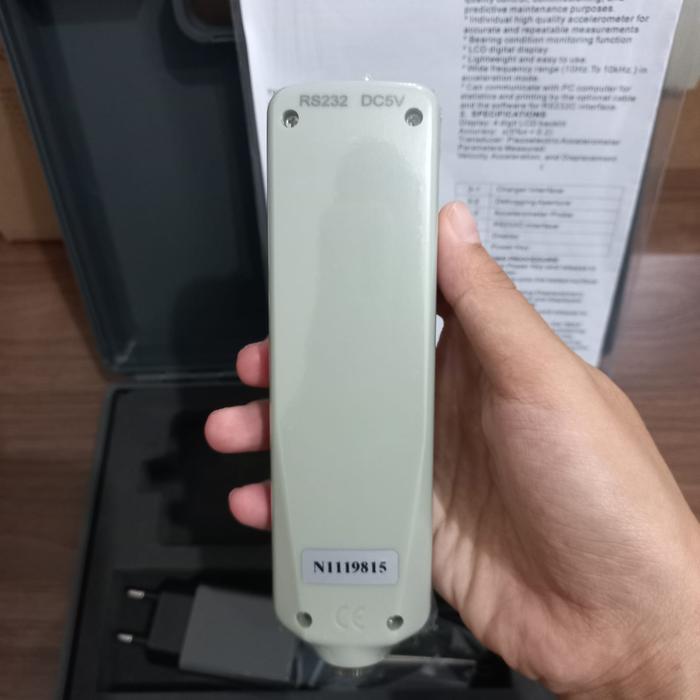

Pen Vibration Tester Meter AV-160P Amittari

Product Feature * Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously. * In accordance with ISO 2954, used for periodic measurements, to detect out-of balance, misalignment and other mechanical faults in rotating machines. * Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes. * Individual high quality accelerometer for accurate and repeatable measurements. * With Max Hold function. * Wide frequency range (10Hz~10kHz) in acceleration mode. * Bearing condition monitoring function. * Use USB data output and RS-232 data output to connect with PC. Product Parameters Vibration Sensor Piezoelectric Accelerometer Accuracy ±10%+2 digits Measurement Range Acceleration: 0.1-300.0m/s² equivalent peak 985ft/s² Velocity: 0.01-300.00mm/s true RMS 0.000~13.00inch/s Displacement: 0.001-3.000mm 0.04~120.0mil equivalent pk-pk Frequency Range Acceleration: 10Hz ~ 10kHz Velocity :10Hz ~1kHz Displacement : 10Hz ~ 1kHz Operating Conditions Temperature : 0-50 ℃ Humidity : below 95% RH Power Supply Lithium Battery Size 202x43x23 mm ( 8.0x1.7x0.9 inch ) Weight 130g (Including Batteries)
