Hydrophobic membrane filter prevents moisture passing through air vents and resistant to almost all chemicals. Round disc type and Roll type are both available for different applications. Inert to most aggressive solvents, including strong acids. Operating temperature ranges from -120°C to 260°C. Applications Clarifying corrosive substances, strong acids and alkalies Purify samples and mobile phases of HPLC and GC Used to sterilize gasses, vent gas from aqueous solutions, or sterilize or clarify aggressive chemicals Technical Data Brand : Starlab/Hawach Scientific Filter Media Hydrophobic PTFE Pore Size 0.22Um Diameter 47 mm Bubble Point ≧0.13MPa(0.22Um) Flow Rate@23 ℃, H2O ≥ 6 mL/min/cm2@1bar(0.22Um) Thicknes 150 – 250Um PH Range 1 – 14 Chemical compatibility Resistant to almost all chemicals Maximum Operating Pressure 4.2 bar@23 ℃ Qty 100 pcs/Pack

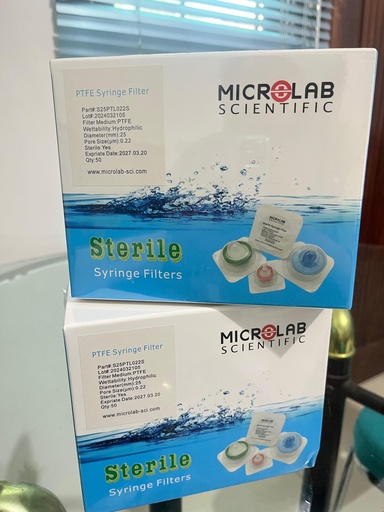

25mm Hydrophilic PTFE Syringe Filter 0.22um with Outer Ring and Printing
Cat. No C0000644

1) Description

PTFE syringe filter with the highest chemical compatibility rating, strong chemical stability and inertia ,strong hydrophobicity ,suitable for the clarification of organic solvents. Recommended for HPLC and GC samples, sterilisation and clarification of most solvents and filtration of gases and air for venting.

2) Details

Product Name
Labfil syringe filter
Wetting Hydrophilic

Size 25mm

Material PTFE Membrane

Application HPLC and GC samples

Feature Female Luer-Lock

3) Advantages

Aggressive solvents, acids, and bases;

Filter organic-based HPLC samples;

Venting Applications;

25mm PTFE Hydrophobic Syringe Filter 0.45um with Outer Ring and Printing
Merk Labfil
Product Item : C0000649
Category： PTFE Hydrophobic Syringe Filter
Filter Material: PTFE Hydrophobic Primary
Color: Red
Diameter: 25mm.

Nylon Syringe Filter Steril
Merk Microlab Scientific SteriFil Syringe Filter SteriFil syringe filters, are purpose-built with feature designed to bring the highest levels of performance and purity to your research. Each filter is individually packed and sterilized by gamma Radiation. We incorporate a variety of membranes to offer separation and purification solutions for the majority of your laboratory needs. The membranes range from Nylon, CA, MCE, PES, PTFE, PVDF, GF, RC to PP, which are supplied in 13mm, 25mm, 30/33mm no virgin medical PP housings. Specification Parameters 25mm Filtration area (cm2) 2.98 Normal Pore Size(μm) 0.45 Holdup volume (μl) lt;50 Sample volume (ml) lt;100 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 Sterilization Gamma Radiation Radicalization Computation 4K (Dmin) Testing Method GB15979-1995 Period of validity 3years

Nylon Syringe Filter Steril Merk Microlab Scientific SteriFil Syringe Filter SteriFil syringe filters, are purpose-built with feature designed to bring the highest levels of performance and purity to your research. Each filter is individually packed and sterilized by gamma Radiation. We incorporate a variety of membranes to offer separation and purification solutions for the majority of your laboratory needs. The membranes range from Nylon, CA, MCE, PES, PTFE, PVDF, GF, RC to PP, which are supplied in 13mm, 25mm, 30/33mm no virgin medical PP housings. Specification Parameters 25mm Filtration area (cm2) 2.98 Normal Pore Size(μm) 0.45 Holdup volume (μl) lt;50 Sample volume (ml) lt;100 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 Sterilization Gamma Radiation Radicalization Computation 4K (Dmin) Testing Method GB15979-1995 Period of validity 3years

SteriFil Syringe Filter SteriFil syringe filters, are purpose-built with feature designed to bring the highest levels of performance and purity to your research. Each filter is individually packed and sterilized by gamma Radiation. We incorporate a variety of membranes to offer separation and purification solutions for the majority of your laboratory needs. The membranes range from Nylon, CA, MCE, PES, PTFE, PVDF, GF, RC to PP, which are supplied in 13mm, 25mm, 30/33mm no virgin medical PP housings. Specification Parameters 25mm Filtration area (cm2) 2.98 Normal Pore Size(μm) 0.45 Holdup volume (μl) lt;50 Sample volume (ml) lt;100 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 Sterilization Gamma Radiation Radicalization Computation 4K (Dmin) Testing Method GB15979-1995 Period of validity 3years

SteriFil Syringe Filter SteriFil syringe filters, are purpose-built with feature designed to bring the highest levels of performance and purity to your research. Each filter is individually packed and sterilized by gamma Radiation. We incorporate a variety of membranes to offer separation and purification solutions for the majority of your laboratory needs. The membranes range from Nylon, CA, MCE, PES, PTFE, PVDF, GF, RC to PP, which are supplied in 13mm, 25mm, 30/33mm no virgin medical PP housings. Specification Parameters 25mm Filtration area (cm2) 2.98 Normal Pore Size(μm) 0.22 Holdup volume (μl) lt;50 Sample volume (ml) lt;100 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 Sterilization Gamma Radiation Radicalization Computation 4K (Dmin) Testing Method GB15979-1995 Period of validity 3years

CA syringe Filter Merk Microlab Saintific Features Color coding of each unit for easy identification Added sample distribution ring Resistance high pressure Only Layer Membrane Structure, less dissolution content Passed HPLC Test Specification Parameters 13mm Filtration area (cm2) 0.92 Normal Pore Size(μm) 0.22 0.45 Holdup volume (μl) lt;10 Sample volume (ml) lt;10 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 ◆Hydrophilic property ◆Low protein binding: suitable for aqueous protein solutions ◆Nitrate free: suitable for groundwater filtration ◆Quiet uniform pore size structure ◆Extensive pore size specification ◆Cell retention and particle collection

CA syringe Filter Merk Microlab Saintific Features Color coding of each unit for easy identification Added sample distribution ring Resistance high pressure Only Layer Membrane Structure, less dissolution content Passed HPLC Test Specification Parameters 13mm Filtration area (cm2) 0.92 Normal Pore Size(μm) 0.22 0.45 Holdup volume (μl) lt;10 Sample volume (ml) lt;10 Inlet/Outlet Female luer lock/Male luer slip Maximum Operating Temperature 50°C Maximum Operating Pressure (psi) gt;87 ◆Hydrophilic property ◆Low protein binding: suitable for aqueous protein solutions ◆Nitrate free: suitable for groundwater filtration ◆Quiet uniform pore size structure ◆Extensive pore size specification ◆Cell retention and particle collection

The number one purpose of any mortar and pestle set is to grind solids into fine powders but under conditions that are highly controlled as to not produce any heating effects and to minimize and control any effects due to stretching of sometimes deformable materials. This is probably the most ancient device one is likely to find in a modern scientific laboratory or kitchen. Because of the ability to control the grinding, and also to virtually eliminate contamination from the mortar and pestle set itself, agate is the preferred material and is used in laboratories and the finest kitchens worldwide to prepare delicate sauces and pastes and for the grinding of dried spices and herbs. From a cross-contamination and cleanliness (hygiene) standpoint if in the kitchen, the high density agate is far more desirable than the more porous porcelain which could grow bacteria in the pores and present a health problem. If a mortar and pestle of metal construction is used, it is generally recognized that metal particles enter the ground powder, thereby presenting either a health concern or else a contaminant is precision scientific measurements are to be made on the ground powder.

The number one purpose of any mortar and pestle set is to grind solids into fine powders but under conditions that are highly controlled as to not produce any heating effects and to minimize and control any effects due to stretching of sometimes deformable materials. This is probably the most ancient device one is likely to find in a modern scientific laboratory or kitchen. Because of the ability to control the grinding, and also to virtually eliminate contamination from the mortar and pestle set itself, agate is the preferred material and is used in laboratories and the finest kitchens worldwide to prepare delicate sauces and pastes and for the grinding of dried spices and herbs. From a cross-contamination and cleanliness (hygiene) standpoint if in the kitchen, the high density agate is far more desirable than the more porous porcelain which could grow bacteria in the pores and present a health problem. If a mortar and pestle of metal construction is used, it is generally recognized that metal particles enter the ground powder, thereby presenting either a health concern or else a contaminant is precision scientific measurements are to be made on the ground powder.

Catalogue Number SCWP04700
Trade Name
MF-Millipore
Description MF-Millipore Membrane Filter, 8 µm pore size
Background Information Biologically inert mixtures of cellulose acetate and cellulose nitrate have made MF-Millipore membrane filters one of the most widely used membranes in analytical and research applications.

MF-Millipore filters without Triton surfactant contain minimum amounts of wetting agent and have a lower water extractable content than standard MF-Millipore filters.

Features & Benefits:
- Versatile filter for biological and environmental monitoring applications
- Available in a range of pore sizes, colored black or white, with or without a gridded surface
- Compatible with ethylene oxide, gamma irradiation, and autoclave sterilization methods
Product Information
Filter Code SCWP
Filter Color White
Maximum Operating Temperature 75 °C
Quality Level MQ400
Applications
Application 47 mm diameter, mixed cellulose esters (MCE) membrane, hydrophilic, white, 100 discs
Biological Information
Media MF-Millipore
Wettability Hydrophilic
Physicochemical Information
Refractive Index 1.515
Pore Size 8.0 µm
Air Flow Rate 65 L/min x cm²
Bubble Point at 23 °C ≥0.42 bar, air with water
Gravimetric Extractables 6%
Porosity % 84%
Water Flow Rate
620 mL/min x cm²
Protein Binding 150 µg/cm²
Dimensions
Filter Surface Plain
Filter Dimensions 1.9 cm x 4.2 cm
Thickness 135 µm
Filter Diameter (⌀) 47 mm
Materials Information
Chemistry
Mixed Cellulose Esters (MCE)
Packaging Information
Material Size Hydrophilic, 8.0 µm, 47 mm, white, plain, 100

Description
Catalogue Number HAWP04700
Trade Name
MF-Millipore
Description MF-Millipore Membrane Filter, 0.45 µm pore size
Background Information Biologically inert mixtures of cellulose acetate and cellulose nitrate have made MF-Millipore membrane filters one of the most widely used membranes in analytical and research applications.

MF-Millipore filters without Triton surfactant contain minimum amounts of wetting agent and have a lower water extractable content than standard MF-Millipore filters.

Features & Benefits:
- Versatile filter for biological and environmental monitoring applications
- Available in a range of pore sizes, colored black or white, with or without a gridded surface
- Compatible with ethylene oxide, gamma irradiation, and autoclave sterilization methods

Product Information

Filter Code HAWP
Filter Color White
Maximum Operating Temperature 75 °C
Quality Level MQ400

Applications

Application 47 mm diameter, mixed cellulose esters (MCE) membrane, hydrophilic, white, 100 discs
Contaminant of Interest
Particles (Particulate and gel like matter)
Insoluble Contamination (Particulate and Gel-Like Matter)
Sediment
Regulated Test Method Number
ASTM D4898
ASTM D4807

Biological Information
Insulin Adsorption 262 µg/cm²
Media MF-Millipore
Wettability Hydrophilic

Physicochemical Information
Refractive Index 1.51
Pore Size 0.45 µm
Air Flow Rate 4 L/min x cm²
Bubble Point at 23 °C ≥1.8 bar, air with water
Gravimetric Extractables 2.5%
Porosity % 79%
Water Flow Rate
60 mL/min x cm²

Dimensions
Filter Surface Plain
Thickness 150 µm
Filter Diameter (⌀) 47 mm

Materials Information
Chemistry
Mixed Cellulose Esters (MCE)
Packaging Information
Material Size Hydrophilic, 0.45 µm, 47 mm, white, plain, 100

mixed cellulose esters (MCE),
Merck Millipore
Code HAWG04700
Media : MF-Millipore
Wettability : Hydrophilic
Filter Surface : Gridded
Pore size : 0.45 um Filter
Diameter (⌀) : 47 mm
qty. 100pcs/pack
Background information : Biologically inert mixtures of cellulose acetate and cellulose nitrate have made MF-Millipore membrane filters one of the most widely used membranes in analytical and research applications. MF-Millipore filters without Triton surfactant contain minimum amounts of wetting agent and have a lower water extractable content than standard MF-Millipore filters. Features amp; Benefits: - Versatile filter for biological and environmental monitoring applications - Available in a range of pore sizes, colored black or white, with or without a gridded surface - Compatible with ethylene oxide, gamma irradiation, and autoclave sterilization methods

Catalogue Number SMWP04700 Trade Name MF-Millipore Description MF-Millipore Membrane Filter, 5 µm pore size Background Information Biologically inert mixtures of cellulose acetate and cellulose nitrate have made MF-Millipore membrane filters one of the most widely used membranes in analytical and research applications. MF-Millipore filters without Triton surfactant contain minimum amounts of wetting agent and have a lower water extractable content than standard MF-Millipore filters. Features amp; Benefits: - Versatile filter for biological and environmental monitoring applications - Available in a range of pore sizes, colored black or white, with or without a gridded surface - Compatible with ethylene oxide, gamma irradiation, and autoclave sterilization methods material: mixed cellulose esters (MCE) membrane plain filter white filter Agency: in accordance with ASTM D5755 sterility: non-sterile feature: hydrophilic manufacturer/tradename: MF-Millipore Millipore parameter: 32 L/min-cm2 air flow rate 580 mL/min-cm2 water flow rate 75 °C max. temp. filter diam.: 47 mm thickness: 135 μm gravimetric extractables: 6% refractive index: n/D 1.495 matrix: MF-Millipore pore size: 5.0 μm pore size 84 % porosity capacity: 150 μg/cm2 binding capacity (protein) bubble point: ≥0.42 bar, air with water at 23 °C shipped in: ambient

Description
Catalogue Number GSWP04700
Trade Name
MF-Millipore
Description MF-Millipore Membrane Filter, 0.22 µm pore size
Background Information Biologically inert mixtures of cellulose acetate and cellulose nitrate have made MF-Millipore membrane filters one of the most widely used membranes in analytical and research applications.

MF-Millipore filters without Triton surfactant contain minimum amounts of wetting agent and have a lower water extractable content than standard MF-Millipore filters.

Features & Benefits:
- Versatile filter for biological and environmental monitoring applications
- Available in a range of pore sizes, colored black or white, with or without a gridded surface
- Compatible with ethylene oxide, gamma irradiation, and autoclave sterilization methods

Product Information:
Filter Code GSWP
Filter Color White
Maximum Operating Temperature 75 °C
Quality Level MQ400
Applications
Application 47 mm diameter, mixed cellulose esters (MCE) membrane, hydrophilic, white, 100 discs
Biological Information
Media MF-Millipore
Wettability Hydrophilic
Physicochemical Information
Refractive Index 1.51
Pore Size 0.22 µm
Air Flow Rate 2 L/min x cm²
Bubble Point at 23 °C ≥3.52 bar, air with water
Gravimetric Extractables 2%
Porosity % 75%
Water Flow Rate
18 mL/min x cm²
Protein Binding 150 µg/cm²

Dimensions
Filter Surface Plain
Thickness 150 µm
Filter Diameter (⌀) 47 mm

Materials Information
Chemistry Mixed Cellulose Esters (MCE)

Packaging Information
Material Size Hydrophilic, 0.22 µm, 47 mm, white, plain, 100

Product Name Labfil NY Nylon Membrane Filter
Material Nylon
Diameter 47mm
Pore Size 0.22 um
colors White
Packgae 100 pcs Packed in one Box;


Details
1) Description

Nylon Membrane filters are made of nylon material, which is known for its excellent mechanical strength and chemical stability. NY membrane filters have good heat resistance and alkali resistance, but are not suitable for certain types of organic solvents and acidic solutions. These membranes typically have a fixed pore size that can be selected based on the size of particles required to be removed, making them very practical in laboratory and industrial applications.

2) Application

Nylon membranes are widely used in biology and chemistry laboratories, especially in sample preparation, purification of liquids and gases, particle analysis, microbiological research, and many other areas. NY membranes are also commonly used in food and beverage inspection, as well as in the pharmaceutical and water treatment industries. Due to their high adaptability and efficiency, Nylon membrane filters have become an indispensable tool in many key industrial and scientific research fields.

3)Features
One of the most commonly used membranes.
Broad compatibility with aqueous and organic solvents, with stable hydrophilicity, not suitable for highly acidic sample

Basic Information

Product Name Labfil NY Nylon Membrane Filter

Material Nylon
Diameter 47mm
Pore Size 0.22 um /0.45 um
colors White
Packgae 100 pcs Packed in one Box;
C0000303 47mm Nylon Membrane 0.22um. 100pcs/pk.
C0000305 47mm Nylon Membrane 0.45um. 100pcs/pk.

Details
1) Description

Nylon Membrane filters are made of nylon material, which is known for its excellent mechanical strength and chemical stability. NY membrane filters have good heat resistance and alkali resistance, but are not suitable for certain types of organic solvents and acidic solutions. These membranes typically have a fixed pore size that can be selected based on the size of particles required to be removed, making them very practical in laboratory and industrial applications.


2) Application

Nylon membranes are widely used in biology and chemistry laboratories, especially in sample preparation, purification of liquids and gases, particle analysis, microbiological research, and many other areas. NY membranes are also commonly used in food and beverage inspection, as well as in the pharmaceutical and water treatment industries. Due to their high adaptability and efficiency, Nylon membrane filters have become an indispensable tool in many key industrial and scientific research fields.

3)Features
One of the most commonly used membranes.
Broad compatibility with aqueous and organic solvents, with stable hydrophilicity, not suitable for highly acidic samples

PP Membrane Filter

Labfil PP Polypropylene Membrane Filters are popular for their chemical resistance and economical practicality.

Basic Information

Product Name

Labfil PP Membrane Filter
Material PP
Diameter 47 mm
Pore Size 0.45 um
colors White
Packgae 100 pcs Packed in one Box

PP Membrane Filter

Labfil PP Polypropylene Membrane Filters are popular for their chemical resistance and economical practicality.

)Basic Information

Product Name
Labfil PP Membrane Filter
Material PP
Diameter 47 mm
Pore Size 0.22 um
colors White
Packgae 100 pcs Packed in one Box
